Under OBC 9.9.10.1, every floor level in an Ontario home that contains a sleeping area must have at least one outside window with a clear opening of 0.35 m² (3.77 ft²) and no single dimension under 380 mm (15 in). The window must be operable from the inside without tools and hold itself open without support. That rule applies whether you are finishing a basement bedroom in Bowmanville, creating a secondary suite in Oshawa, or converting a rec room anywhere across Durham Region.
Key minimum dimensions to remember for egress windows include a minimum clear opening area, a minimum size for every single dimension (width and height), and a minimum clearance in front of the window when it opens into a well.
The sill height rule adds one more: for above-grade bedrooms, the window sill must sit no higher than a regulated maximum height above the finished floor. Basements are exempt from that sill-height cap, but they still must meet the area and dimension minima. A permit is required before cutting any foundation wall, and a municipal inspector will verify compliance before the project can be legally occupied.
| Requirement | Minimum | Applies to |
|---|---|---|
| Clear opening area | 0.35 m² (3.77 ft²) | All sleeping-area floors |
| Minimum single dimension | 380 mm (15 in) | Width and height |
| Sill height (above grade) | Max 1,000 mm above floor | Above-grade bedrooms only |
| Window well clearance | 550 mm in front of open window | Any window opening into a well |
| Operability | No tools required | All egress windows |
Table of Contents
- When does the OBC require an egress window in your home?
- Exact size, measurement method, and what inspectors actually measure
- Which window styles meet OBC egress rules, and how is the opening measured?
- Window wells: clearance, depth, covers, and drainage
- Permits, structural work, and waterproofing: what must be planned
- What building inspectors actually measure, and the mistakes that cause failures
- Pre-install planning checklist: what to do before ordering the window
- How LA Rocks Renovations plans and installs an egress window, step by step
- Key takeaways
- Why code accuracy matters more than most homeowners expect
- LA Rocks Renovations handles egress window installs in Durham Region
- Authoritative sources and where to confirm local rules
When does the OBC require an egress window in your home?
The trigger is straightforward: any floor level containing a sleeping area needs a compliant egress window unless a door on that same level opens directly to the exterior. A walkout basement with a full-size exterior door on the bedroom level qualifies as the exception. Every other configuration needs the window.
In practice, this catches more projects than homeowners expect. A finished basement bedroom, a secondary suite, a converted rec room with a pull-out sofa, and even a loft used for overnight guests can all trigger the requirement. The code does not ask whether you call the room a bedroom on the floor plan; it asks whether the space is used, or likely to be used, for sleeping.
The key test: if a room contains a bed, a sofa bed, or any furnishing reasonably intended for overnight use, treat it as a sleeping area and plan for a compliant egress window. Inspectors apply this interpretation, and building officials routinely reject basement bedrooms that lack a dedicated egress window or a direct exterior door on that floor level.
Municipal permit applications submitted after April 1, 2025 must reference the 2024 Ontario Building Code, which came into full effect for new applications on that date. Because municipalities can apply local practices on top of the provincial standard, always confirm interpretations with your local authority having jurisdiction (AHJ) before finalising plans.
Pro Tip: Call your local building department before ordering a window. Some municipalities have specific requirements for secondary suites or heritage properties that go beyond the base OBC text.
Exact size, measurement method, and what inspectors actually measure
The most important concept in egress compliance is the distinction between clear opening and frame or rough opening size. Inspectors measure the clear opening: the unobstructed space available when the window is fully open. Sash thickness, hardware, cranks, and frame members all reduce that space. A window that looks large in the rough opening can easily fall short of the 0.35 m² minimum once those deductions are made.
The two requirements must both be satisfied simultaneously:
- The clear opening area must be at least 0.35 m².
- No single dimension of that opening can be less than 380 mm.
While the code specifies minimum clear opening area and minimum dimension sizes, a small square opening with both dimensions at the minimum often does not meet the area requirement; therefore, one dimension usually needs to be considerably larger to satisfy both criteria simultaneously. Common compliant window sizes vary depending on style and sash operation.
Pro Tip: Always request the manufacturer’s clear-opening specification sheet before purchasing. The spec sheet states the actual usable opening, not the frame or glass size. Bring that document to your permit appointment and to the inspection.
| Measurement | Requirement | Notes |
|---|---|---|
| Clear opening area | ≥ 0.35 m² (3.77 ft²) | Measured when fully open, unobstructed |
| Minimum dimension | ≥ 380 mm (15 in) each direction | Both width and height must clear this |
| Sill height (above grade) | ≤ 1,000 mm above finished floor | Basement floors exempt from this cap |
| Operability | No tools, no keys | Must hold open without support |
| Window well clearance | ≥ 550 mm in front of open sash | Measured from open sash to well wall |
Which window styles meet OBC egress rules, and how is the opening measured?
Window style has a direct effect on how much of the frame actually counts toward the clear opening. Understanding the differences before you order can save a costly replacement.
Casement windows are the most efficient choice for tight basement openings. The entire sash swings outward, so nearly the full frame area becomes usable clear opening. For a narrow horizontal basement opening, a casement often achieves compliance where other styles cannot.
Sliding windows are a common pitfall. Only the openable sash counts toward the clear opening, so a slider must be considerably wider overall to deliver 0.35 m² in the moving portion alone. A 1,000 mm wide slider with two equal sashes provides roughly 500 mm of openable width; at 380 mm height, that yields only 0.19 m², which fails. The slider would need to be substantially larger, or the height increased, to comply.
Double-hung windows share a similar limitation: only one sash moves at a time, so the usable clear opening is half the frame height at best. They can comply in larger sizes but are rarely the most practical choice for a basement installation.
Hopper windows (hinged at the bottom, opening inward) are common in basements. The clear opening is the full sash area minus any frame intrusion, but the inward swing must not obstruct the escape path. Confirm the clear-opening figure on the spec sheet before assuming compliance.
| Window style | How clear opening is counted | Egress efficiency |
|---|---|---|
| Casement | Full sash area (swings out) | High |
| Sliding | Openable sash only | Moderate — needs larger overall frame |
| Double-hung | One sash at a time | Moderate — needs taller frame |
| Hopper | Full sash minus frame intrusion | Moderate — inward swing can obstruct |
Pro Tip: For basement egress in Durham Region, casement windows typically deliver the most clear opening per dollar of frame size. Ask your window supplier to confirm the clear-opening figure in writing before the order is placed.
Window wells: clearance, depth, covers, and drainage
A window well is part of the egress route, and the OBC treats it as such. The minimum clearance in front of the open window is 550 mm, measured from the fully open sash to the well wall. If the sash swings toward the well, its arc cannot reduce the required clearance in a way that would restrict escape. When a window well exceeds a specified depth threshold, a permanent ladder or fixed steps are required. Inspectors look for fixed, code-grade access, not removable or improvised aids. Planning for these during excavation is essential.
Well covers are permitted but must open from the inside without a key or any special knowledge of the mechanism. A padlocked cover is an automatic inspection failure. Covers that require two hands and a specific sequence to open are also problematic; the standard is that a person escaping in an emergency can open it quickly and without prior instruction.
Window well drainage is often overlooked until water appears. A gravel base at the bottom of the well, connected to the weeping tile or sump system, prevents the well from filling during heavy rain. A flooded well is not a usable egress path, and inspectors often check drainage during the inspection stage.
Pro Tip: Size the well generously beyond the 550 mm minimum. A well that just meets the clearance requirement leaves little room for a person to manoeuvre in an emergency. An extra 150–200 mm of depth and width costs little during excavation and makes a real difference in usability.
Permits, structural work, and waterproofing: what must be planned
Creating a new opening in a foundation wall is a structural modification. A building permit is required before any cutting begins, and the permit application must include drawings that show the proposed opening dimensions, the lintel design, and how the installation meets the OBC minima.
Typical permit-stage inspections include:
- Pre-construction review of drawings and structural details
- Framing/structural inspection after the lintel is installed and before the window is set
- Final inspection verifying clear opening, sill height, well clearance, drainage, and operability
Structural steps the contractor must complete:
- Structural assessment to confirm foundation type and load path above the proposed opening
- Temporary shoring of the floor or wall above before cutting begins
- Engineered lintel design and installation to carry the load across the new opening
- Foundation cut using appropriate equipment for the wall material (poured concrete, block, or stone)
- Window installation with proper flashing and air-sealing at the perimeter
Waterproofing is where many projects develop long-term problems. The membrane must wrap continuously from the exterior wall face into the window frame perimeter, with no gaps at the lintel or sill. Drainage tile or a sump connection prevents water from pooling at the base of the new opening. Backfill should be compacted in lifts to avoid settlement that could crack the membrane.
Cutting a foundation for an egress window requires an engineered lintel and properly sequenced waterproofing; improper work creates both structural risk and a direct leak path into the basement. Budget for these steps from the start rather than treating them as optional upgrades.
What building inspectors actually measure, and the mistakes that cause failures

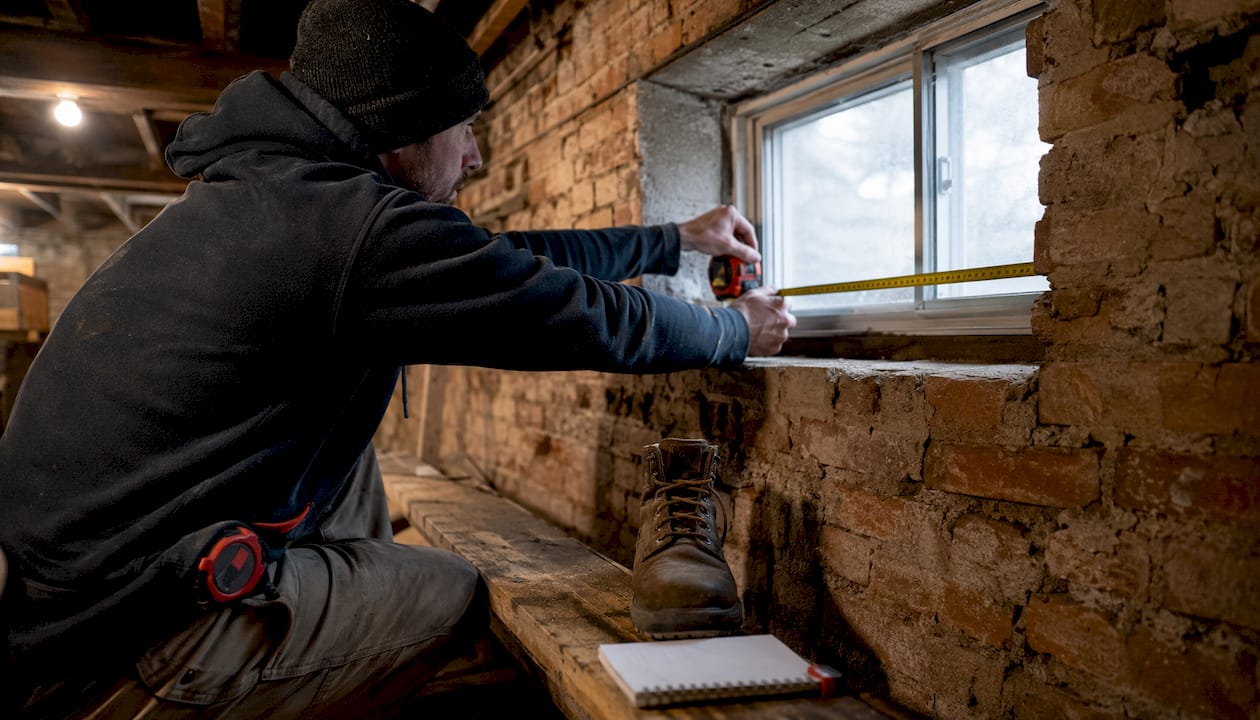

Inspectors arrive with a tape measure and the OBC. They measure the clear opening: openable width multiplied by the height of the unobstructed opening when the window is fully open. Anything that reduces that space, including the sash frame, hardware, a screen, or a crank handle in the swing path, is counted as an obstruction.
The most common inspection failures:
- Using the frame or rough opening dimension instead of the manufacturer’s clear-opening figure
- Window well clearance under 550 mm, often because the well was sized to the rough opening rather than the open sash
- Locked or difficult-to-open well covers
- Sill height measured to the rough sill rather than the finished floor surface
- No permanent ladder or steps in a well that exceeds the depth threshold
- Poor or absent well drainage
Pre-inspection checklist:
- Confirm the manufacturer’s clear-opening spec sheet matches the installed window
- Measure well clearance with the sash fully open
- Test operability from the inside: no tools, no keys, holds open without support
- Verify permanent ladder or steps if the well depth requires them
- Check that the well cover opens freely from the inside
Pro Tip: Bring the manufacturer’s spec sheet and a simple dimensioned sketch of the well to the inspection. Inspectors appreciate documentation that confirms compliance before they measure, and it reduces the chance of a re-inspection.
Pre-install planning checklist: what to do before ordering the window
Getting the measurements and documentation right before ordering saves time, money, and the frustration of a non-compliant window arriving on site.
Measurements and documentation to collect:
- Confirm the room classification: is it used or likely to be used as a sleeping area?
- Measure the finished floor level and the existing rough opening (width × height)
- Obtain the manufacturer’s clear-opening specification for the window you are considering
- Note the foundation wall thickness and material (poured concrete, block, or stone)
Site considerations:
- Foundation type and condition at the proposed opening location
- Room layout relative to stairs, walkout doors, or other potential egress routes
- Overhead obstructions (decks, porches, or grade) that affect well depth and drainage
Questions to ask your contractor before signing:
- Will you handle the permit application, or is that my responsibility?
- What is the lintel design, and is it engineered?
- What waterproofing method and membrane will you use?
- How will the well drain, and does it tie into the weeping tile or sump?
- What warranty do you offer on the waterproofing and installation workmanship?
Documents to have ready for the permit application and inspection:
- Dimensioned floor plan showing the proposed window location
- Manufacturer’s clear-opening spec sheet
- Lintel engineering drawing or letter
- Contractor’s licence number and proof of liability insurance
How LA Rocks Renovations plans and installs an egress window, step by step
A professional egress window installation follows a defined sequence. Skipping or reordering steps is where projects run into structural problems, leaks, or failed inspections.
The LA Rocks Renovations installation workflow:
- Site assessment and measurements: confirm room classification, foundation type, existing opening size, and clear-opening requirements against the proposed window spec sheet.
- Permit application: prepare and submit drawings, lintel design, and OBC compliance documentation to the local building department.
- Temporary shoring: install temporary supports to carry the load above the proposed cut before any foundation work begins.
- Foundation cut and lintel installation: cut the opening to the engineered dimensions, install the lintel, and allow for inspection before proceeding.
- Window installation and flashing: set the window unit, flash the perimeter continuously, and air-seal the frame.
- Well excavation, drainage, and waterproofing: excavate to the required depth and width, install the gravel base, connect drainage to the weeping tile or sump, and apply the waterproof membrane.
- Interior finishing: frame the interior rough opening, insulate, and finish with drywall and trim to match the room.
- Municipal inspection: arrange the final inspection with the clear-opening spec sheet and well dimensions documented.
What LA Rocks Renovations verifies at every install: manufacturer clear-opening figure against the installed unit, sill height from the finished floor, well clearance with the sash fully open, drainage tie-in, and permanent ladder or steps where the well depth requires them. Every project receives a handover package with the spec sheet, permit sign-off, and warranty documentation.
Pro Tip: Ask your contractor for the permit sign-off and the manufacturer’s spec sheet at project handover. You will need both if you ever sell the home or if an insurer asks for proof of code compliance.
Key takeaways
Ontario’s egress window rules come down to three numbers: 0.35 m² clear opening, 380 mm minimum dimension, and 550 mm well clearance, all verified against the manufacturer’s spec sheet, not the frame size.
| Point | Details |
|---|---|
| Core minima | 0.35 m² clear opening, no dimension under 380 mm, 550 mm well clearance. |
| Sill height rule | Above-grade bedrooms: sill no higher than 1,000 mm above finished floor; basements are exempt. |
| Measure clear opening | Always use the manufacturer’s spec sheet, not the frame or rough opening size. |
| Permit before cutting | A building permit is required before any foundation wall is cut; confirm local AHJ requirements. |
| LA Rocks Renovations | Handles permits, structural cuts, lintels, waterproofing, and final inspection for egress projects in Durham Region. |
Why code accuracy matters more than most homeowners expect
The egress rules exist for one reason: if interior stairs are blocked by fire, the person sleeping in that room needs an independent path out. Inspectors measure strictly because a window that is 20 mm too narrow or a well that is 50 mm too shallow can make evacuation physically impossible. There is no partial credit.
What surprises homeowners most often is not the window itself but everything around it. Hidden rebar in a poured concrete wall can double the cutting time and cost. A well that needs to be deeper than expected to clear the sash swing may require a permanent ladder that was not in the original budget. A sump connection that was assumed to be nearby turns out to be on the opposite side of the basement. And occasionally, a window that looks generous from the inside has a clear opening that falls just short of 0.35 m² once the sash and hardware are accounted for.
The other common surprise is the permit timeline. In some Durham Region municipalities, permit review for a structural modification takes several weeks. Starting the permit process early, with complete drawings and a manufacturer spec sheet in hand, is the single most effective way to keep the project on schedule.
— Dylan
LA Rocks Renovations handles egress window installs in Durham Region
Getting an egress window right means more than buying a compliant unit. The permit, the foundation cut, the lintel, the waterproofing, and the well drainage all have to come together correctly, or the project fails inspection and the room cannot be legally occupied.
La Rocks Renovations manages the full scope for homeowners across Bowmanville, Clarington, Newcastle, Oshawa, Whitby, Ajax, Pickering, and the surrounding Durham Region. That includes permit applications, engineered lintel installation, window supply and installation, well excavation and drainage, waterproofing, and interior finishing. Every project is handed over with the permit sign-off and manufacturer documentation so you have proof of compliance on file.
If you are planning a basement renovation in Durham Region and need an egress window as part of the project, or if you have a basement bedroom that has never had a compliant window, contact La Rocks Renovations to arrange a site visit and quote. The team will confirm your room classification, measure the existing opening, and walk you through exactly what the project involves before any work begins.
Authoritative sources and where to confirm local rules
The sources below are the most reliable starting points for verifying egress window requirements in Ontario. No single online guide replaces the actual code text or a conversation with your local building department.
- OBC 9.9.10.1 via CodeIndex: the primary legal text for egress windows and doors for bedrooms in Ontario. Read the full article, including the sentences on window wells, sash swing, and protective enclosures.
- Builders Ontario egress guide: a practical plain-language breakdown of the floor-level trigger, common exceptions, and window style considerations.
- Window Force Inc. — legal basement window size: explains the clear-opening measurement method and why manufacturer spec sheets matter.
- Your local authority having jurisdiction (AHJ): every municipality in Ontario can apply interpretations and local practices on top of the provincial OBC. Call your building department before submitting a permit application.
- Manufacturer clear-opening spec sheets: bring these to both the permit appointment and the final inspection. They are the document inspectors use to verify compliance when they cannot measure a window that is already installed.
One rule that applies everywhere in Ontario: the clear-opening figure on the manufacturer’s spec sheet is the number that matters at inspection, not the frame size, not the glass size, and not a measurement taken at the rough opening. Confirm it in writing before the window is ordered.
